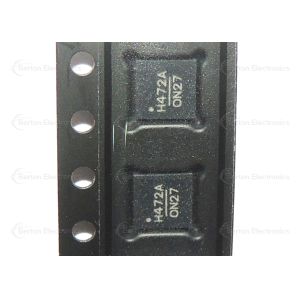

The HMC472ALP4 is a high-performance GaAs MMIC (Monolithic Microwave Integrated Circuit) voltage-controlled attenuator manufactured by Analog Devices (formerly Hittite Microwave Corporation). Designed for RF and microwave applications, it offers precise, voltage-controlled attenuation of radio frequency signals with excellent linearity and wide frequency coverage, making it suitable for wireless communication systems, radar, and test equipment.
1. Core Features
1.1 Attenuation Performance
- Attenuation Range: 0 dB to 31 dB, providing a wide range of signal strength adjustment capabilities.
- Control Voltage Range: 0 V to -5 V, allowing straightforward analog control of attenuation levels. The attenuation increases linearly with the magnitude of the control voltage (more negative voltage = higher attenuation).
- Frequency Coverage: 10 MHz to 6 GHz, supporting a broad spectrum of applications including cellular (5G/4G), Wi-Fi, satellite communications, and radar systems.
- Attenuation Accuracy: ±1 dB typical across the entire range, ensuring consistent and reliable signal level adjustment.
1.2 RF Performance
- Insertion Loss: Typically 1.5 dB at 2 GHz (0 dB attenuation state), minimizing signal degradation when operating at minimum attenuation.
- Return Loss: Better than 15 dB (typical) across the frequency range, ensuring good impedance matching to 50 Ω systems and reducing signal reflections.
- Linearity: Excellent linearity with OIP3 (Output Third-Order Intercept Point) of +40 dBm (typical), making it suitable for high-power signal environments without significant distortion.
- Power Handling: Up to +27 dBm (500 mW) average input power, allowing operation in high-power RF systems.
- Amplitude Flatness: ±0.5 dB typical across the frequency band, ensuring consistent attenuation performance over the entire operating range.
1.3 Electrical Characteristics and Operation
- Control Voltage Sensitivity: Approximately 6.2 dB/V, providing predictable and linear attenuation response to control voltage changes.
- Switching Speed: Fast settling time of typically 1 µs, enabling rapid adjustment of attenuation levels for dynamic signal environments.
- Temperature Stability: Excellent temperature stability of ±0.01 dB/°C (typical), ensuring consistent performance across varying operating temperatures.
1.4 Power Supply and Packaging
- Power Supply: Single positive supply voltage of +5 V, with low current consumption of 10 mA (typical), making it suitable for power-constrained applications.
- Package: 4-lead SOT-23 surface-mount package, measuring 2.9 mm * 2.8 mm. This compact package is ideal for space-constrained RF designs and offers ease of assembly.
- Operating Temperature Range: -40°C to +85°C, ensuring reliable operation in industrial and harsh environmental conditions.
2. Typical Applications
The HMC472ALP4's combination of wide frequency range, linear attenuation response, and excellent RF performance makes it ideal for various applications:
| Application Field | Specific Use Cases |
| Wireless Communication | - 5G/4G base stations and small cells, for transmit power control and receiver gain adjustment.
- Wi-Fi access points, for dynamic signal level control and interference management.
- Cellular repeaters and boosters, for optimizing signal levels in coverage extension systems. |
| Radar and Sensing | - Automotive radar systems, for adjusting receiver sensitivity based on target distance.
- Weather radar and surveillance systems, for controlling signal levels to handle varying return strengths.
- Industrial sensing systems, for optimizing RF signal levels in proximity and level detection. |
| Test and Measurement | - RF signal generators and analyzers, for precise attenuation of test signals.
- Automated test equipment (ATE), for dynamic signal level adjustment during component testing.
- Calibration systems, for providing known attenuation levels in measurement setups. |
| Satellite and Aerospace | - Satellite communication transceivers, for compensating link budget variations.
- Avionics communication systems, for adjusting signal levels in airborne RF links.
- Spaceborne instrumentation, for controlling signal levels in radiation-hardened environments. |
| Broadband Systems | - Cable TV and broadband networks, for balancing signal levels across different channels.
- Microwave point-to-point links, for adjusting signal strength to maintain optimal link quality. |
3. Key Advantages
- Wide Frequency Coverage: 10 MHz to 6 GHz operation supports a diverse range of current and emerging wireless standards.
- Linear Attenuation Response: Provides predictable attenuation characteristics over the entire control voltage range, simplifying system calibration.
- Excellent RF Performance: Low insertion loss, high return loss, and superior linearity minimize signal degradation and distortion.
- Compact Size: Small SOT-23 package saves board space, making it suitable for miniaturized RF designs.
- Easy Integration: Simple analog voltage control simplifies system design and integration with control circuits.
- Temperature Stability: Consistent performance across temperature extremes ensures reliability in harsh environments.
The HMC472ALP4 is a versatile voltage-controlled attenuator that delivers high performance across a broad frequency range, making it an excellent choice for various RF and microwave systems requiring precise and dynamic signal level control.
